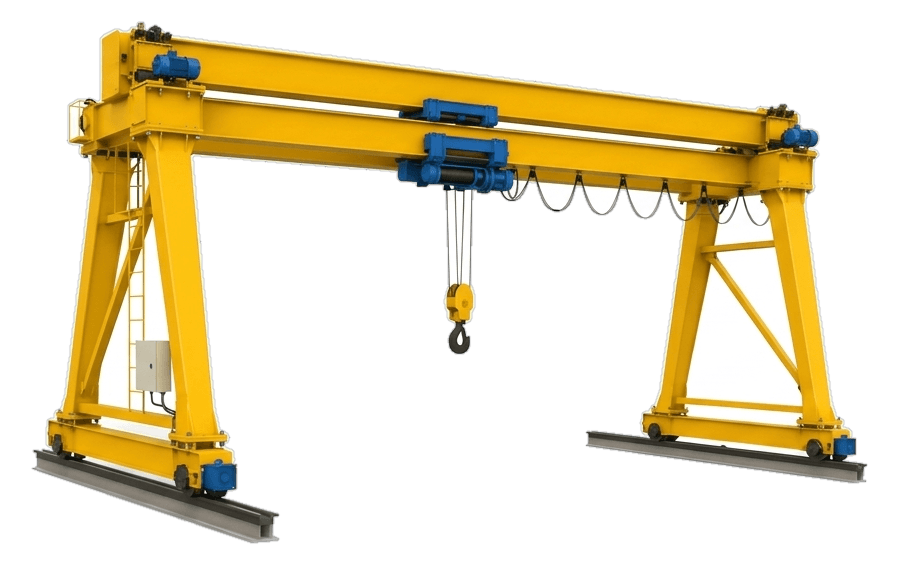

Explosion-proof (flameproof) cranes are specially engineered material handling systems designed for hazardous environments containing flammable gases, vapors, or combustible dust (Zone 1, Zone 2, Gas Groups IIA, IIB, IIC). They feature PESO/ATEX certified Ex-d flameproof enclosures, copper-beryllium or bronze-coated hooks, solid brass wheels, anti-kick rollers, and intrinsically safe electrical circuits to prevent sparks.
Key Takeaways for Engineers & Procurement Leads
- Standard industrial electrical motors and steel wheels can ignite volatile chemical vapors through electrical arcing or mechanical friction sparks.
- Flameproof Ex-d enclosures are designed to withstand an internal explosion without allowing flames or hot gases to escape into the surrounding explosive atmosphere.
- Non-sparking materials (bronze coating on hooks, brass wheels, stainless steel wire rope guides) are mandatory for Gas Group IIC (Hydrogen/Acetylene) applications.
- Induct Crane ERP archives all PESO explosion-proof test certificates and flameproof motor enclosures in your digital client workspace.
In chemical processing plants, oil refineries, fertilizer units, pharmaceutical cleanrooms, and solvent storage depots, the presence of flammable gases, vapors, or combustible dust creates extremely hazardous working conditions. Installing standard electrical overhead cranes in these environments poses catastrophic explosion risks.
Hazardous Zone Classifications (Zone 1 vs Zone 2)
Under IS/IEC 60079 standards, hazardous areas are categorized based on the frequency and duration of an explosive atmosphere:
- Zone 1: An area in which an explosive gas atmosphere is likely to occur in normal operation (e.g. solvent extraction plants, reactor charging bays). Requires Ex-d flameproof protection on all motors, brakes, and electrical enclosures.
- Zone 2: An area in which an explosive gas atmosphere is not likely to occur in normal operation, and if it occurs, will exist for a short period only (e.g. chemical warehouse, sealed pipe corridors). Requires Ex-n / Ex-d protected components.
Flameproof Protection Mechanisms Engineered by Induct Crane
| Sub-System | Standard Crane Spec | Explosion-Proof / Flameproof Spec |
|---|---|---|
| Electric Motors | Standard IP55 TEFC Motor | PESO Approved Ex-d Flameproof Motor (Group IIA/IIB/IIC) |
| Control Panel | Sheet Steel IP54 Enclosure | Heavy Cast Aluminum / Cast Iron Ex-d Flameproof Panel |
| Lifting Hook | Standard Forged Carbon Steel | Solid Bronze or Copper-Beryllium Coated Non-Sparking Hook |
| Crab / LT Wheels | Forged EN9 / EN31 Steel | Solid Brass Wheels or Bronze-Bushed Steel Wheels |
| Brake Unit | Standard AC Electro-Magnetic | Flameproof DC Solenoid / Electro-Hydraulic Thrustor Brake |
| Limit Switches | Standard Snap-Action Switch | Ex-d Flameproof Rotary & Cross Roller Limit Switches |
Non-Sparking Mechanical Engineering
Electrical arcing is only half the danger in a chemical plant; mechanical friction sparks caused by metal-on-metal contact are equally hazardous:
- Bronze-Coated Hook Blocks: Eliminates sparks if the hook block strikes a steel structure or load container.
- Brass Trolley Bumpers & Anti-Drop Lug Liners: Prevents high-energy impact sparks during end-stop collisions.
- Stainless Steel Wire Rope Sheaves: Resists chemical corrosion and prevents spark generation during high-speed hoisting.
PESO & ATEX Certificate Traceability in Induct Crane ERP
Government safety auditors and PESO (Petroleum and Explosives Safety Organization) inspectors require rigorous certification paperwork before issuing plant operating permits. Induct Crane ERP automatically uploads all PESO flameproof test certificates, CIMFR test reports, and Ex-d enclosure serial numbers into your digital account.
Verified Hazardous Area Compliance
Ensure 100% PESO & ATEX statutory compliance for your chemical plant or refinery. View and download certified flameproof test reports for every motor, panel, and switch directly from Induct Crane Cloud ERP.
Questions Answered in This Guide
Q1.What is the difference between Gas Group IIB and IIC flameproof cranes?
Gas Group IIB covers gases like Ethylene and Coal Gas. Gas Group IIC covers extremely volatile gases like Hydrogen and Acetylene, requiring stricter flameproof joint gaps and mandatory non-sparking bronze coatings on all exposed metal contact points.
Q2.Are Induct Crane flameproof hoists PESO certified?
Yes. All flameproof electric wire rope hoists, motors, control panels, and limit switches manufactured by Induct Crane System carry PESO (CIMFR/ERTL) flameproof test certificates for Zone 1 and Zone 2 hazardous areas.
Q3.How do I request a custom flameproof crane quotation?
Visit http://inductcrane.in/inquiry or contact our hazardous area engineering team at sales@inductcranesystem.com with your gas group (IIA, IIB, IIC), zone classification, capacity, and building span.
